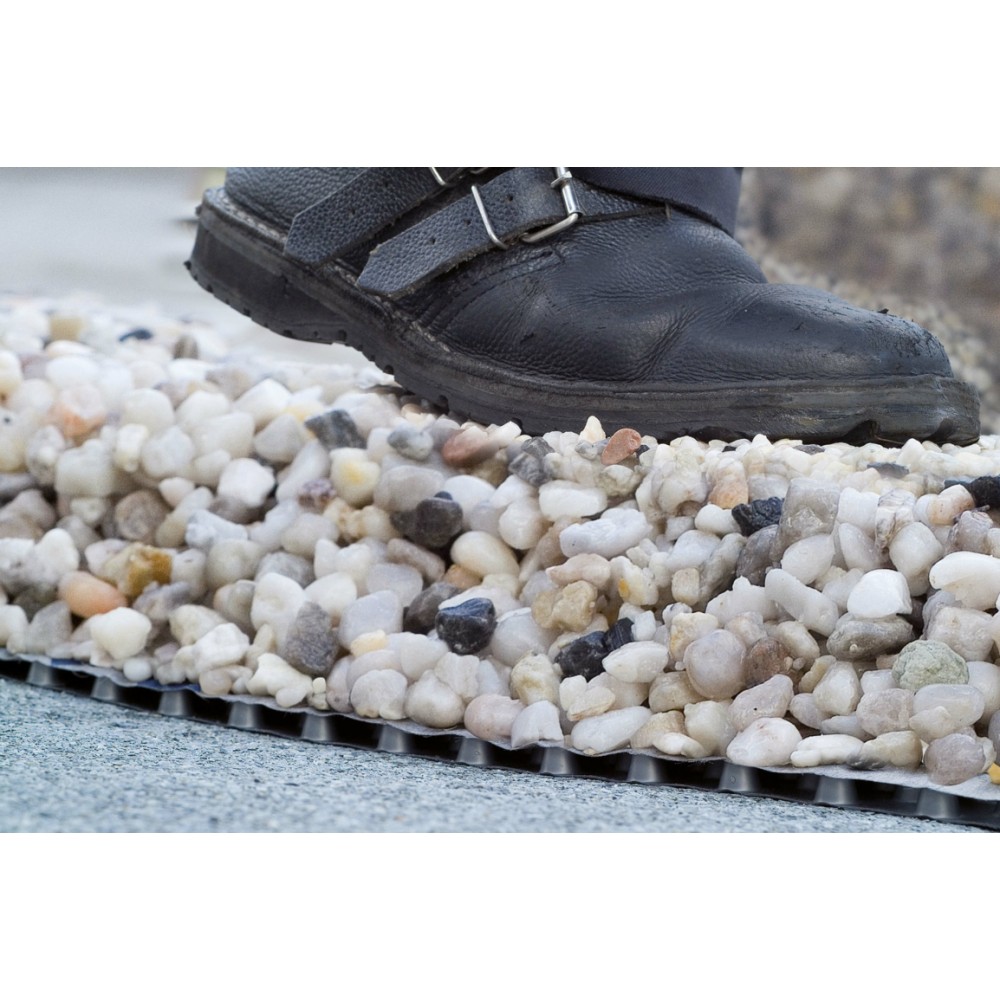

Delta Terraxx two-ply protection and drainage sheet is a high compressive drainage sheet that provides a powerful foundation for vertical and horizontal substrates. The product is perfect for most vertical applications in building, underground and civil engineering construction. With its fused-on geotextile and integrated self-sealing edge, this dimpled sheet provides perfect surface drainage.

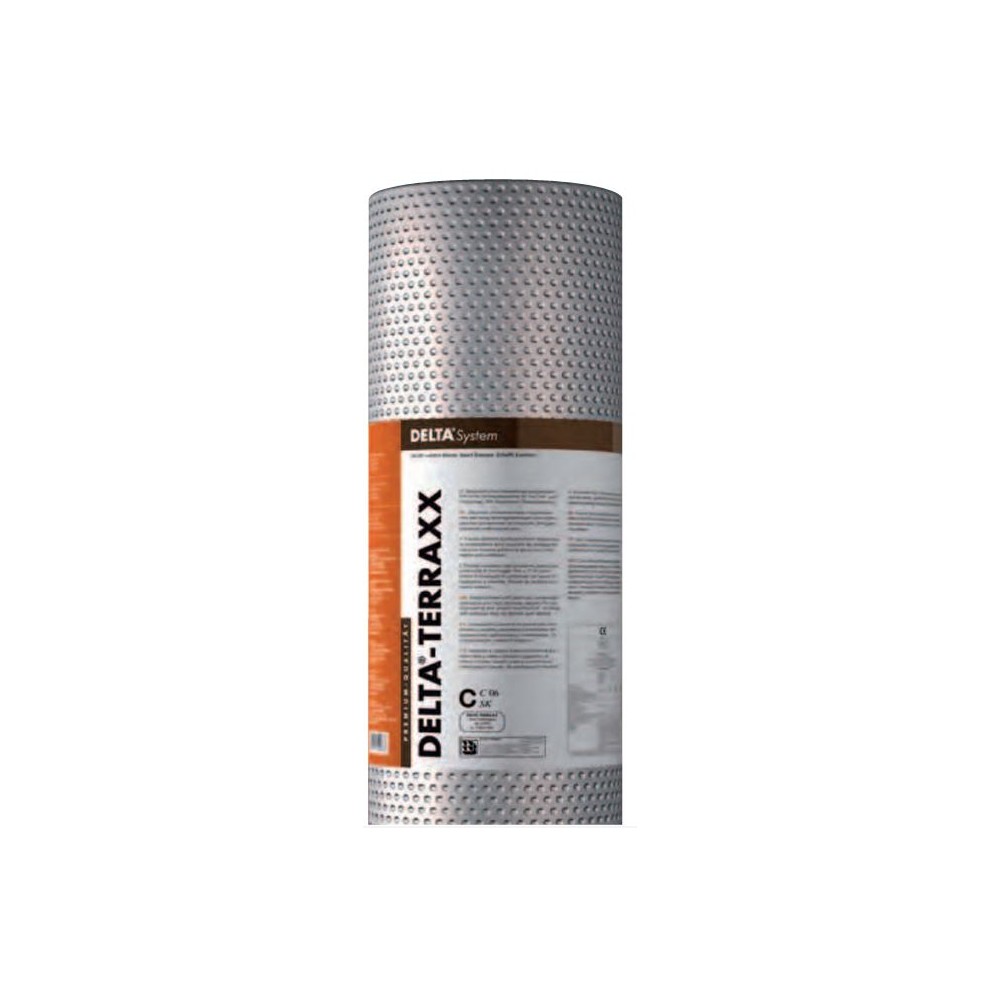

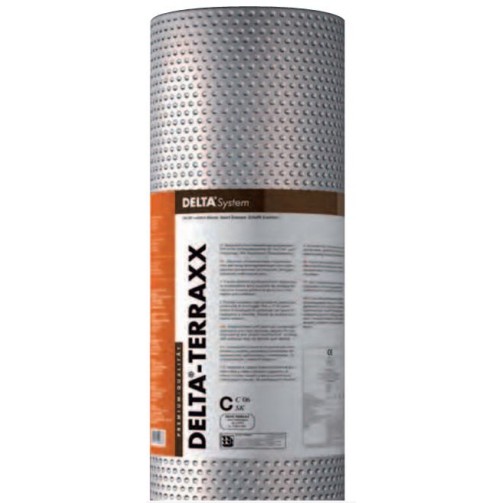

The product is available in 2.4m x 12.5m rolls and has an integrated geotextile fabric to filter out suspended soil particles, ensuring constant drainage through the vertical void created by the dimples.

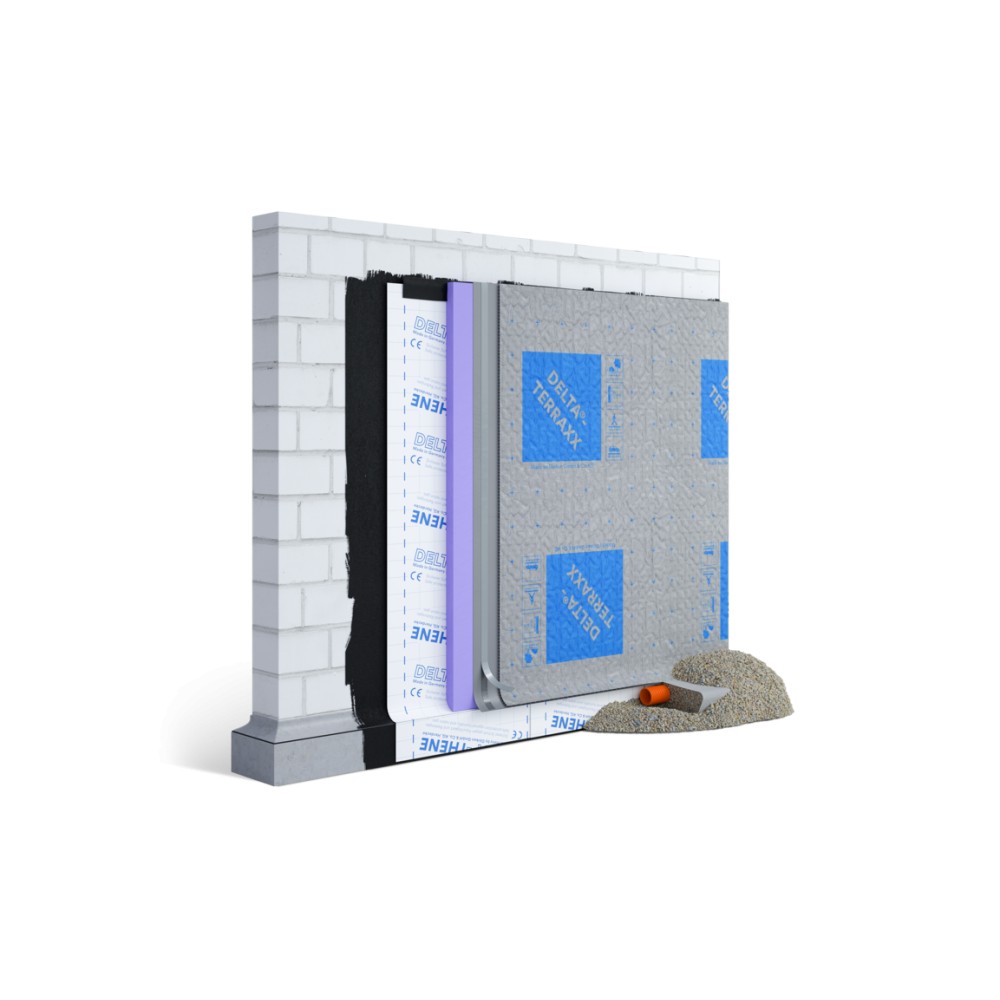

Delta Terraxx has a dimpled membrane on one side offering added protection to the waterproofed surface. The dimples create a void between the wall and the backfilled area offering dependable vertical and horizontal drainage in civil engineering, buildings, retaining walls of all kinds, open tunnels and underground carparks.
Length | 12.5m |
Width | 2.4m |
Dimple Height | 9mm |
Compressive Strength | 40 tonnes /m2 |
Drainage Rate | 12,600L/h.m2 |
Service Temperature | 30°C - 80°C |
Dimpled Sheet Material | HDPE |
Geotextile Material | Nonwoven, stabilized virgin PP, grey with printing |
